CloudShellがVPC内で起動できるようになったらしいので試してみた
やること
AWS CloudShellをVPC内で起動し、PrivateSubnetからDBSubnetのRDS(mysql)へ接続する
実践！
１．環境作成
１－１．下記CloudFormationを実行
AWSTemplateFormatVersion: '2010-09-09' Description: Stack to create VPC, subnets, EC2 instance, NAT Gateway, RDS instance with Secrets Manager Parameters: VpcCIDR: Type: String Default: '10.0.0.0/16' Description: CIDR block for the VPC PublicSubnetCIDR: Type: String Default: '10.0.1.0/24' Description: CIDR block for the public subnet PrivateSubnet1CIDR: Type: String Default: '10.0.2.0/24' Description: CIDR block for the first private subnet PrivateSubnet2CIDR: Type: String Default: '10.0.3.0/24' Description: CIDR block for the second private subnet DbSubnet1CIDR: Type: String Default: '10.0.4.0/24' Description: CIDR block for the first DB subnet DbSubnet2CIDR: Type: String Default: '10.0.5.0/24' Description: CIDR block for the second DB subnet InstanceType: Type: String Default: 't2.micro' Description: EC2 instance type AMIID: Type: String Default: 'ami-061a125c7c02edb39' Description: Amazon Linux 2023 AMI Resources: MyVPC: Type: AWS::EC2::VPC Properties: CidrBlock: !Ref VpcCIDR EnableDnsSupport: true EnableDnsHostnames: true Tags: - Key: Name Value: MyVPC PublicSubnet: Type: AWS::EC2::Subnet Properties: VpcId: !Ref MyVPC CidrBlock: !Ref PublicSubnetCIDR MapPublicIpOnLaunch: true Tags: - Key: Name Value: PublicSubnet PrivateSubnet1: Type: AWS::EC2::Subnet Properties: VpcId: !Ref MyVPC CidrBlock: !Ref PrivateSubnet1CIDR AvailabilityZone: !Select [ 0, !GetAZs '' ] Tags: - Key: Name Value: PrivateSubnet1 PrivateSubnet2: Type: AWS::EC2::Subnet Properties: VpcId: !Ref MyVPC CidrBlock: !Ref PrivateSubnet2CIDR AvailabilityZone: !Select [ 1, !GetAZs '' ] Tags: - Key: Name Value: PrivateSubnet2 DbSubnet1: Type: AWS::EC2::Subnet Properties: VpcId: !Ref MyVPC CidrBlock: !Ref DbSubnet1CIDR AvailabilityZone: !Select [ 0, !GetAZs '' ] Tags: - Key: Name Value: DbSubnet1 DbSubnet2: Type: AWS::EC2::Subnet Properties: VpcId: !Ref MyVPC CidrBlock: !Ref DbSubnet2CIDR AvailabilityZone: !Select [ 1, !GetAZs '' ] Tags: - Key: Name Value: DbSubnet2 InternetGateway: Type: AWS::EC2::InternetGateway Properties: Tags: - Key: Name Value: InternetGateway AttachGateway: Type: AWS::EC2::VPCGatewayAttachment Properties: VpcId: !Ref MyVPC InternetGatewayId: !Ref InternetGateway RouteTable: Type: AWS::EC2::RouteTable Properties: VpcId: !Ref MyVPC PublicRoute: Type: AWS::EC2::Route DependsOn: AttachGateway Properties: RouteTableId: !Ref RouteTable DestinationCidrBlock: '0.0.0.0/0' GatewayId: !Ref InternetGateway NatGatewayEIP: Type: AWS::EC2::EIP Properties: Domain: vpc NatGateway: Type: AWS::EC2::NatGateway Properties: AllocationId: !GetAtt NatGatewayEIP.AllocationId SubnetId: !Ref PublicSubnet PrivateRouteTable1: Type: AWS::EC2::RouteTable Properties: VpcId: !Ref MyVPC PrivateRoute1: Type: AWS::EC2::Route Properties: RouteTableId: !Ref PrivateRouteTable1 DestinationCidrBlock: '0.0.0.0/0' NatGatewayId: !Ref NatGateway PrivateRouteTableAssociation1: Type: AWS::EC2::SubnetRouteTableAssociation Properties: SubnetId: !Ref PrivateSubnet1 RouteTableId: !Ref PrivateRouteTable1 PrivateRouteTable2: Type: AWS::EC2::RouteTable Properties: VpcId: !Ref MyVPC PrivateRoute2: Type: AWS::EC2::Route Properties: RouteTableId: !Ref PrivateRouteTable2 DestinationCidrBlock: '0.0.0.0/0' NatGatewayId: !Ref NatGateway PrivateRouteTableAssociation2: Type: AWS::EC2::SubnetRouteTableAssociation Properties: SubnetId: !Ref PrivateSubnet2 RouteTableId: !Ref PrivateRouteTable2 PublicRouteTable: Type: AWS::EC2::RouteTable Properties: VpcId: !Ref MyVPC PublicRoute1: Type: AWS::EC2::Route Properties: RouteTableId: !Ref PublicRouteTable DestinationCidrBlock: '0.0.0.0/0' GatewayId: !Ref InternetGateway PublicRouteTableAssociation: Type: AWS::EC2::SubnetRouteTableAssociation Properties: SubnetId: !Ref PublicSubnet RouteTableId: !Ref PublicRouteTable DbRouteTable1: Type: AWS::EC2::RouteTable Properties: VpcId: !Ref MyVPC DbRoute1: Type: AWS::EC2::Route Properties: RouteTableId: !Ref DbRouteTable1 DestinationCidrBlock: '0.0.0.0/0' NatGatewayId: !Ref NatGateway DbRouteTableAssociation1: Type: AWS::EC2::SubnetRouteTableAssociation Properties: SubnetId: !Ref DbSubnet1 RouteTableId: !Ref DbRouteTable1 DbRouteTable2: Type: AWS::EC2::RouteTable Properties: VpcId: !Ref MyVPC DbRoute2: Type: AWS::EC2::Route Properties: RouteTableId: !Ref DbRouteTable2 DestinationCidrBlock: '0.0.0.0/0' NatGatewayId: !Ref NatGateway DbRouteTableAssociation2: Type: AWS::EC2::SubnetRouteTableAssociation Properties: SubnetId: !Ref DbSubnet2 RouteTableId: !Ref DbRouteTable2 DBSubnetGroup: Type: AWS::RDS::DBSubnetGroup Properties: DBSubnetGroupDescription: "Subnet group for RDS" SubnetIds: - !Ref DbSubnet1 - !Ref DbSubnet2 DBSecret: Type: AWS::SecretsManager::Secret Properties: Description: "Secrets for RDS access" GenerateSecretString: SecretStringTemplate: '{"username": "admin"}' GenerateStringKey: "password" PasswordLength: 16 ExcludeCharacters: '"@/\' DBInstance: Type: AWS::RDS::DBInstance Properties: DBInstanceClass: db.t3.micro AllocatedStorage: 20 Engine: mysql EngineVersion: "8.0.37" DBSubnetGroupName: !Ref DBSubnetGroup MasterUsername: !Sub '{{resolve:secretsmanager:${DBSecret}:SecretString:username}}' MasterUserPassword: !Sub '{{resolve:secretsmanager:${DBSecret}:SecretString:password}}'
２．CloudShellをVPC内で起動する
※今回はCloudFormationで作成したPrivateSubnetに設置する
２－１．[AWS] - [CloudShell]

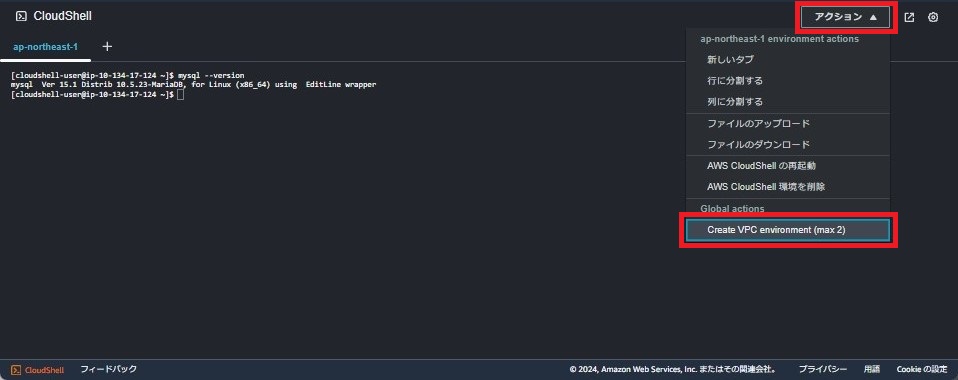

２－２．[アクション] - [Create VPC Environment (max 2)]
２－３．下記を入力
Name：CloudShell名
Virtual private cloud (VPC)：CloudFormationで作成したVPC
Subnet：CloudFormationで作成したPrivateSubnet1
SecurityGroup：CloudFormationで作成したVPCのデフォルトのSG
２－４．[Create]
３．RDS(mysql)接続情報確認(SecretsManager)

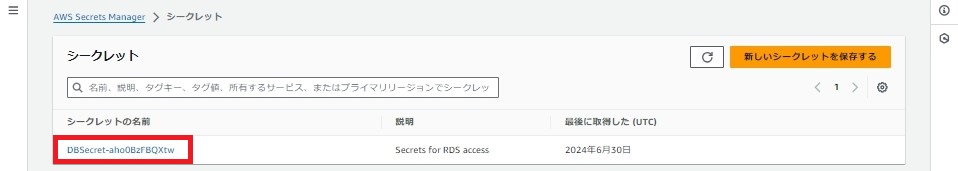

３－１．[AWS] - [SecretsManager]
３－２．CloudFormationで作成したシークレットを選択

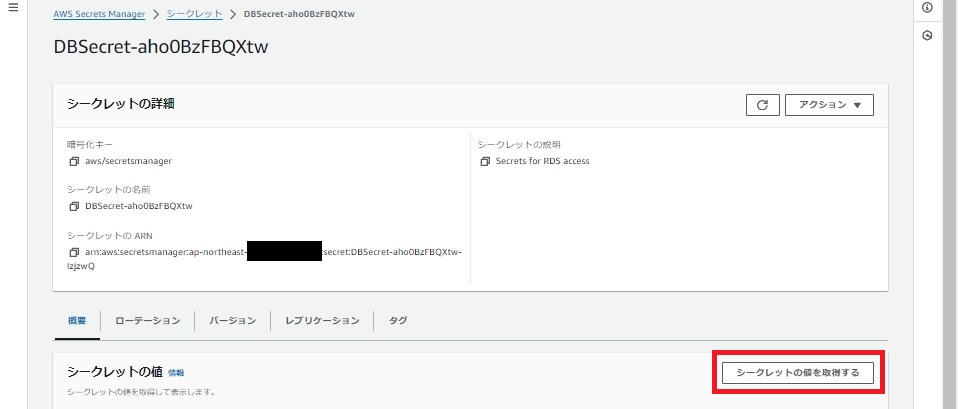

３－３．[シークレットの値を取得する]

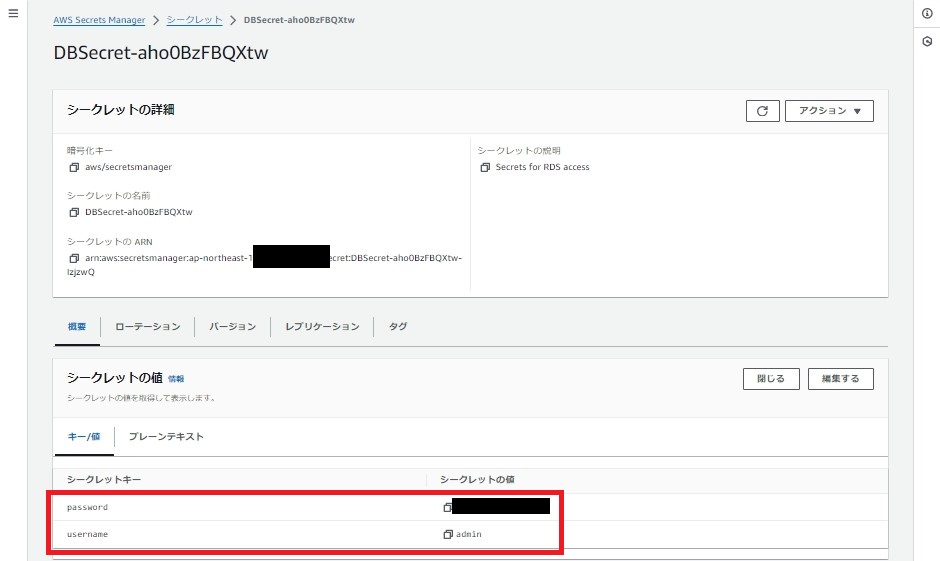

３－４．usernameとpasswordを控える
４．RDS(mysql)接続情報確認(RDS)
４－１．[AWS] - [RDS]

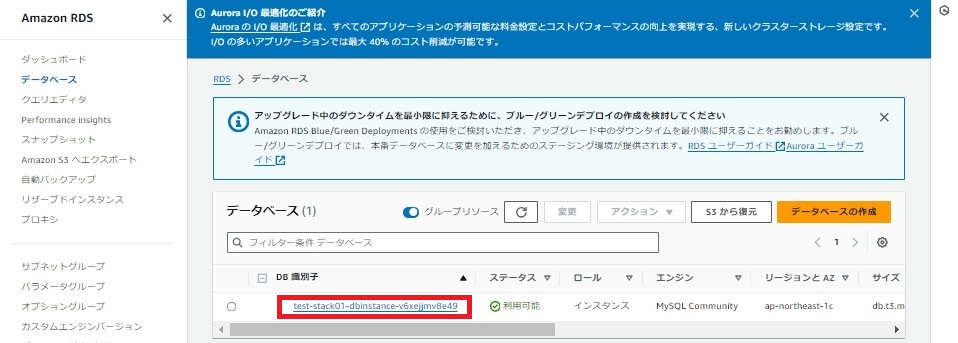

４－２．CloudFormationで作成したデータベースを選択
４－３．エンドポイント名を控える
５．RDS接続確認
５－１．通常のCloudShellとVPC内起動のCloudShellで下記を実行し、VPC内起動のもののみRDSへ接続できることを確認
mysql -h <RDSエンドポイント名> -u admin -p 例）mysql -h test-stack01-dbinstance-v6xejjmv8e49.ckmgc9vjvwrf.ap-northeast-1.rds.amazonaws.com -u admin -p
５－２．Enter Passwordが表６示されたらシークレットのpasswordを入力

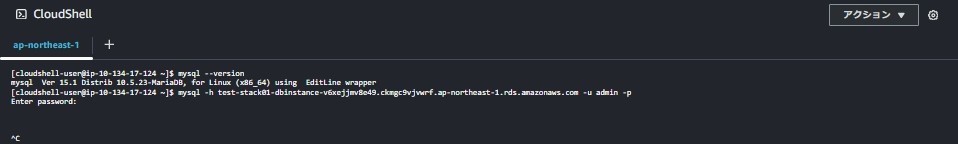

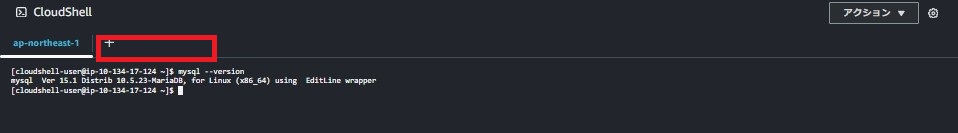

通常のClouShell

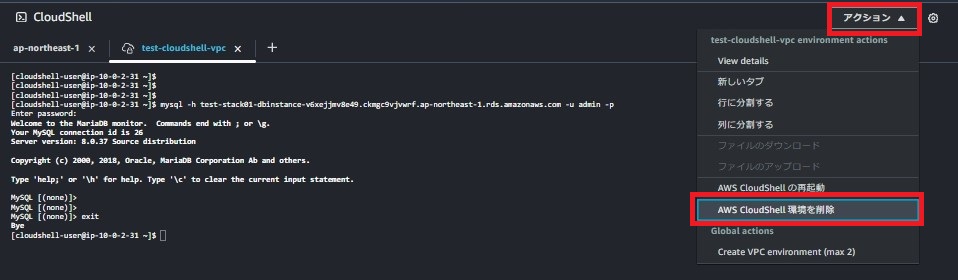

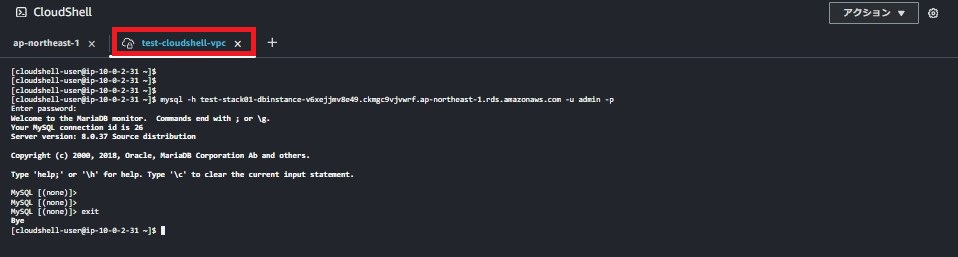

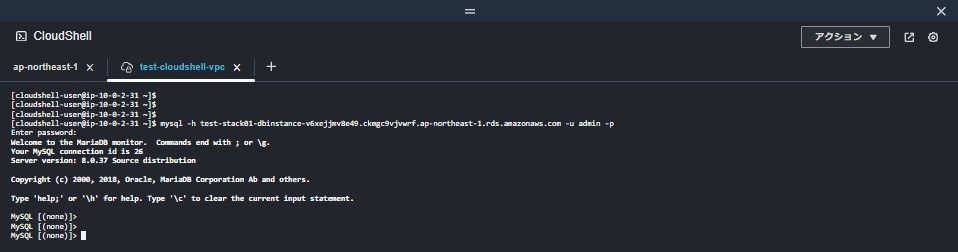

VPC内起動のCloudShell(MySQL [(none)]が表示される)
６．CloudShell環境削除
６－１．[AWS] - [CloudShell]
６－２．VPC内で起動したCloudShellを選択
６－３．[アクション] - [AWS CloudShell 環境を削除]

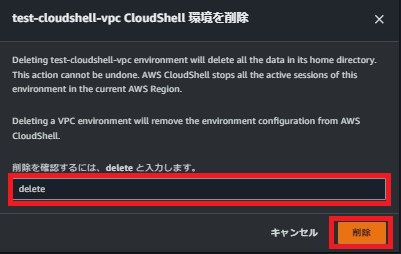

６－４．[delete]を入力し、[削除]
６－５．削除されたことを確認
感想
これでRDSメンテナンス用の踏み台がいらなくなるかも！
